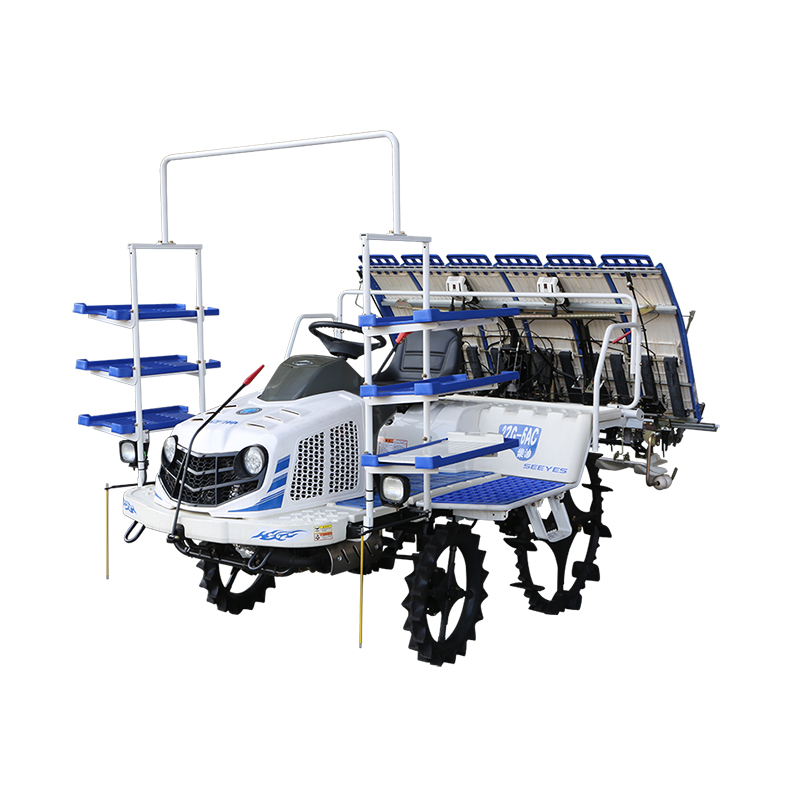

633 High speed rice transplanter

Model			2ZG-6AC（diesel oil版）
Driving method			High speed riding (Four-wheel drive)
Overall dimensions	entire length(mm)		3500
	entire length(mm)		2230
	Full height(运输高度)(mm)		2300
Overall weight(kg)			855
Engine	Engine model		星月神XY377-A
	structural style		Inline 3-cylinder water-cooled 4-stroke
	Total displacement gas volume(cc)		1132
	Power (kW)/Speed (r/min)		18/3000
	fuel		0#diesel oil
	start mode		Starting motor
Walking part	Steering mode		Hydraulic assisted steering
	Variable speed mode		Hydraulic continuously variable transmission [HST]+mechanical transmission in 2nd gear
Transplantation Department	Number of rows for transplanting seedlings (rows)		6
	Transplantation row spacing(cm)		33
	Transplantation spacing(cm)		11、13、15、18、21、25
	Number of transplanted seedlings(株/3.3㎡)		90、80、70、55、45、40
	Transplantation depth(cm)		1~5[6级]
	1 seedling exhausted	Horizontal delivery volume(mm/次)	15.5(18次)/17.5（16次)/20 ( 14次)
	Longitudinal adjustment	Vertical delivery volume(mm)	8~19
Seedling conditions	Seedling types		Block shaped carpet seedlings
	Leaf age and seedling height（叶、cm )		2.0~4.0、8~25
Work efficiency( h㎡/h)(Mu/hour)			0.4~0.6 (6~9)
