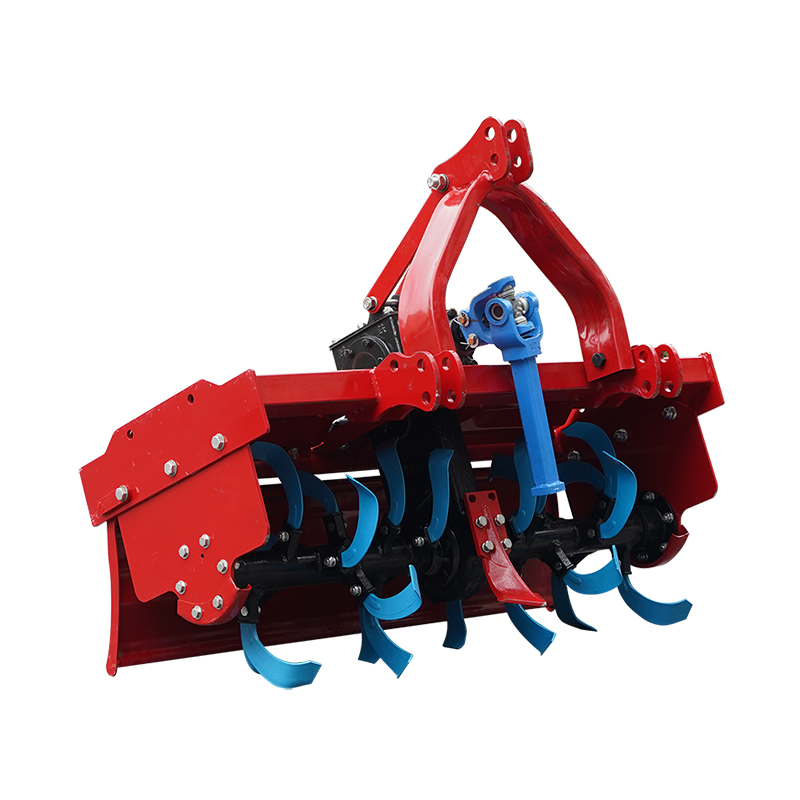

Multifunctional rotary tiller

Engine	Engine model		星月神XY377-A
	Structural form		Inline 3-cylinder water-cooled 4-stroke
	Total displacement gas volume(cc)		1132
	Power (kW)/Speed (r/min)		18/3000
Power output parameters	Power output shaft connection dimensions	Spline have effect length(mm)	55.5
		Major diameter of splineD(mm)	35
		Spline minor diameterd(mm)	27.5
		Key width(mm)	8
		Number of teeth Z	6
	Power output speed(r/min)		360~720
	Power output rotation direction		Clockwise (looking forward from the rear axle)
Rotary tillage department	rotary tillerDimension(mm)		850×1280×1020
	Working width(mm)		≤1200
	Tillage depth(cm)		≤15
	Transmission mode		Intermediate gear transmission
	Rotating blade model		IT175
	Total number of installed knives (pieces)		28
	Type of depth limiting device		Depth limiting plate
	Work efficiency(h㎡/h)(Mu/hour)		0.07-0.14(1-2)
