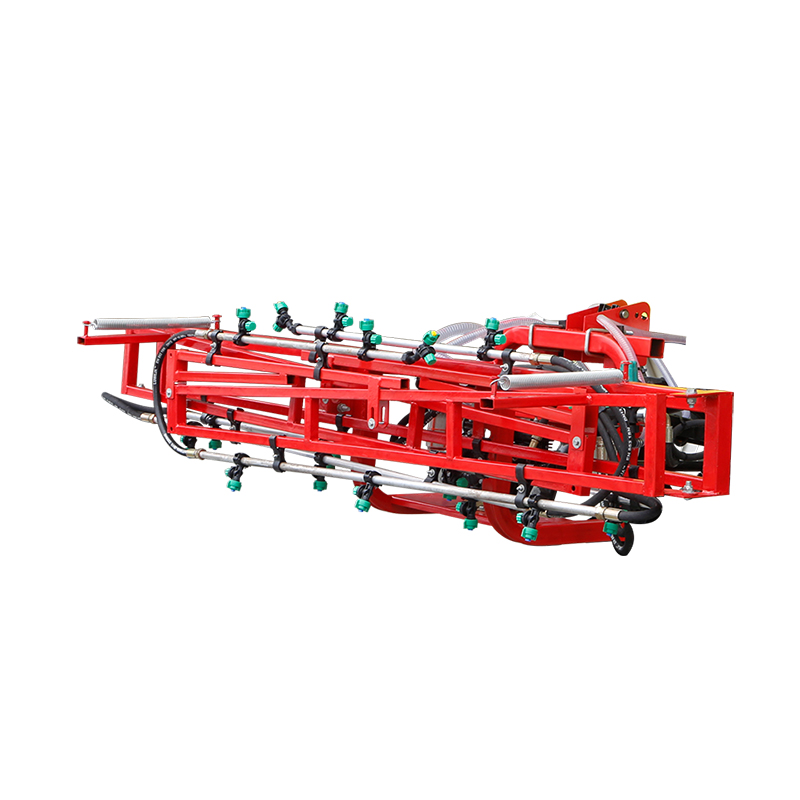

Multifunctional machine spray machine

Engine	Engine model		星月神XY377-A
	Structural form		Inline 3-cylinder water-cooled 4-stroke
	Total displacement gas volume(cc)		1132
	Power (kW)/Speed (r/min)		18/3000
Power output parameters	Power output shaft connection dimensions	Spline have effect length(mm)	55.5
		Major diameter of splineD(mm)	35
		Spline minor diameterd(mm)	27.5
		Key width(mm)	8
		Number of teeth Z	6
	Power output speed(r/min)		360~720
	Power output rotation direction		Clockwise (looking forward from the rear axle)
Spraying Department	Spray amplitude(m)		10
	Spray lever lifting control		Electric hydraulic lifting
	Liquid pump type		diaphragm pump
	maximum working pressure(Mpa)		3
	Liquid pump flow rate(m³/h)		≤80
	Water absorption height(m)		≤3
	Spray nozzle type		Domestic fan-shaped nozzle
	Medicine box capacity(L)		200
	operating pressure at sprinkler(Mpa)		0.2-0.6
	Number of nozzles		16
	Nozzle spacing(cm)		60
	Atomization angle		110°
	Work efficiency(h㎡/h)(Mu/hour)		3.9-5.9(60-90)
